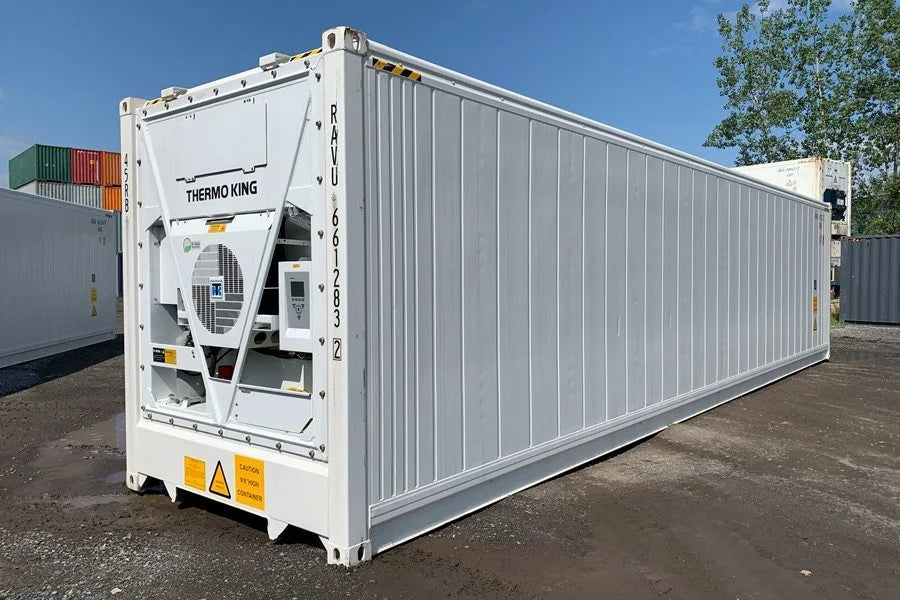

40 FT High Cube New Refrigerated Shipping Container

Specifications One trip reefer container New 40’ HC ISO Reefer container body Stainless steel (MGSS) outer cladding 4 Automatic floor drains, self-closing (2 front and 2 rear) Fully insulated with poly urethane Stainless steel interior walls, food grade Additional features included Panic Alarm with exterior siren and strobe light Interior aluminum scuff liner Aluminum flat floor Heavy duty sliding door curtain to help maintain temperature Safety door, can be opened from inside Interior lighting plus light switch Machinery specifications Thermo King Magnum Plus refrigeration unit Digital scroll compressor with aluminized coating 460 volts, 3 phase 30 amps circuit requirement Temperature range: -40C to +30C Refrigerant: R452A 50ft. power cable Warranty Warranty included with all new reefer containers directly from Thermo King through their extensive nationwide dealer network Reefer warranty attached Container dimensions Exterior: 40’L x 8’W x 9’6”H Interior: 38’L x 7’6”W x 8’6”H Door Opening: 7’6”W x 8’4”H Weight: 9,920 LBS Payload: 65,040 LBS

Features

• One trip reefer container
• New 40’ HC ISO Reefer container body
• Stainless steel (MGSS) outer cladding
• 4 Automatic floor drains, self-closing (2 front and 2 rear)
• Fully insulated with poly urethane
• Stainless steel interior walls, food grade
• Panic Alarm with exterior siren and strobe light
• Interior aluminum scuff liner

External dimensions

• Length: 12.19 m
• Width: 2.44 m
• Height: 2.90 m

Internal dimensions

• Length: 12.03 m
• Width: 2.35 m
• Height: 2.70 m

Specifications

• Door opening: 2.34 m W x 2.58 m H
• Internal volume: 76.3 m³
• Tare weight: 3 750 kg
• Max payload: 26 730 kg
• Construction: Corten weathering steel, 1.6 mm corrugated panels
• Flooring: 28 mm marine-grade plywood on steel cross-members
• Roof: Single-piece corrugated steel with 2% fall
• Condition: New (one-trip)
• Temperature range: -25 °C to +25 °C
• Refrigeration unit: Carrier / Thermo King, fully serviced and gas tested
• Power supply: 380 V 3-phase, 50 Hz
• Insulation: 100 mm polyurethane foam panels
• Interior finish: Food-grade stainless steel lining, T-bar aluminium floor
• Price basis: Ex-yard Durban, excluding VAT and delivery
• Availability: Subject to stock at time of order
